Direct factory for Two-station insertion force testing machine (MY-QZDCB-2) with competitive price

Description

This machine is suitable for the fatigue life test of inserting and unplugging products such as chargers, connectors (pieces), plugs and sockets in notebooks, tablets, e-books, etc.

Technical Specification

1. Plug and pull capacity: 5kg,20kg,50kg optional
2. Station: 2 stations
3. Load accuracy: ±0.5%
4. Unit options: Kg, N, g, lb
5. Displacement accuracy: ±0.5%
6. Displacement resolution :≤0.001mm
7. Speed accuracy :Higher than ±1%F.S;
8. XY axis moving platform stroke: 70mm
9. Test speed range: 1-300mm / min
10. Test times: 99999999 times
11. Maximum test stroke: 300mm
12. External Dimension: 400x370x950mm
13. Control mode: control board + computer
14. Power supply: 220V, 50/60HZ
15. Power: 700W

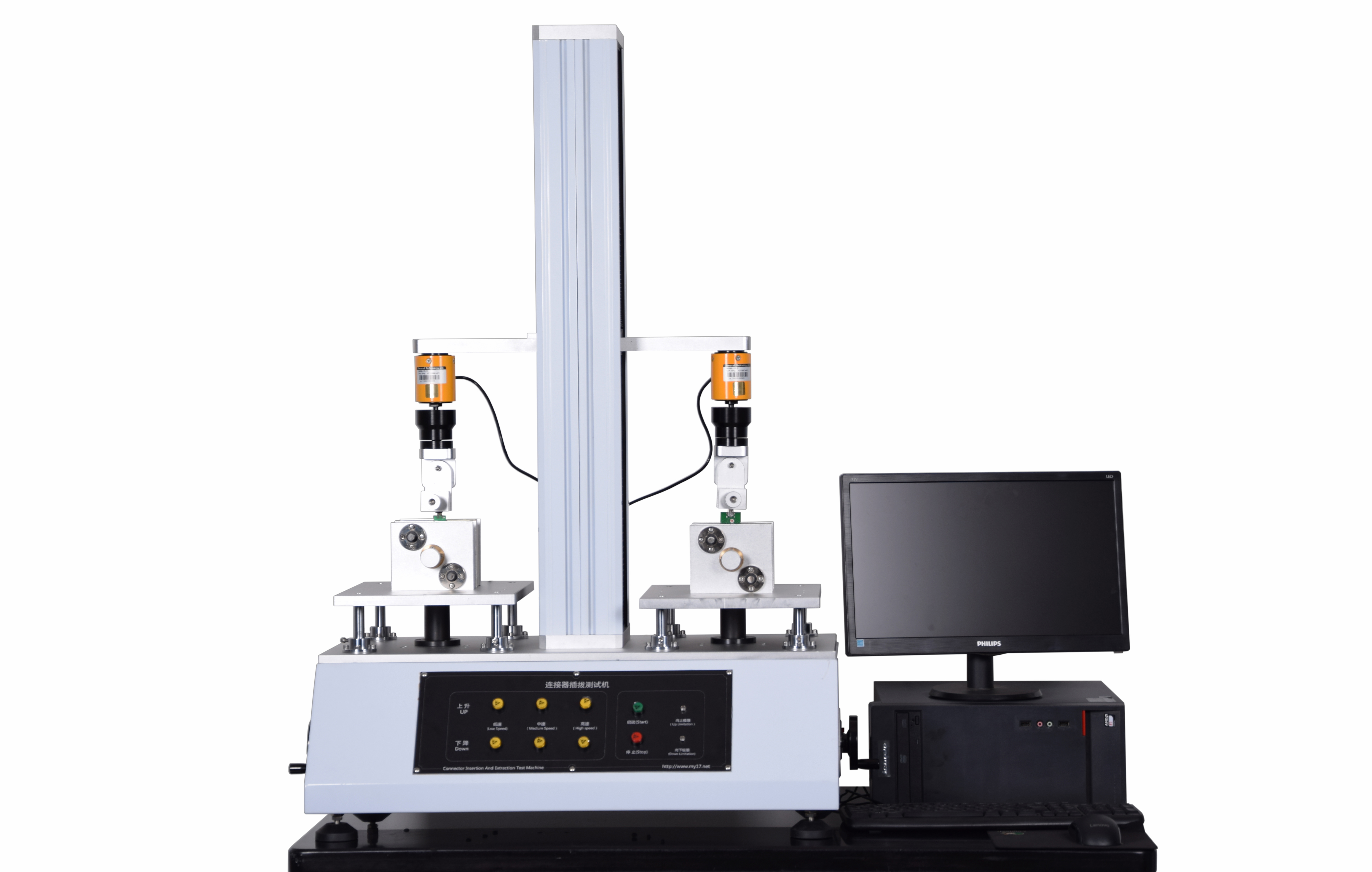

Tester pictures

Certificates

Partner

Shipment
By sea, by air, by truck, by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
