Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ

Minimum Order Quantity:1 set Packaging Details:Standard export package Delivery Time:10-15 days Payment Terms:T/T, Western Union, L/C, MoneyGram Supply Ability:200 sets / month

Product number: MY-WCBL-CD1

Listing time: 2020/03/24

Consultation
Product details
Unit Options:Kg, N, G, LbTest Speed Range:1-300mm / Min
Test Times:99999999 TimesControl Mode:Control Board Card + Computer
Power Supply:220v 50/60HZPower:600W

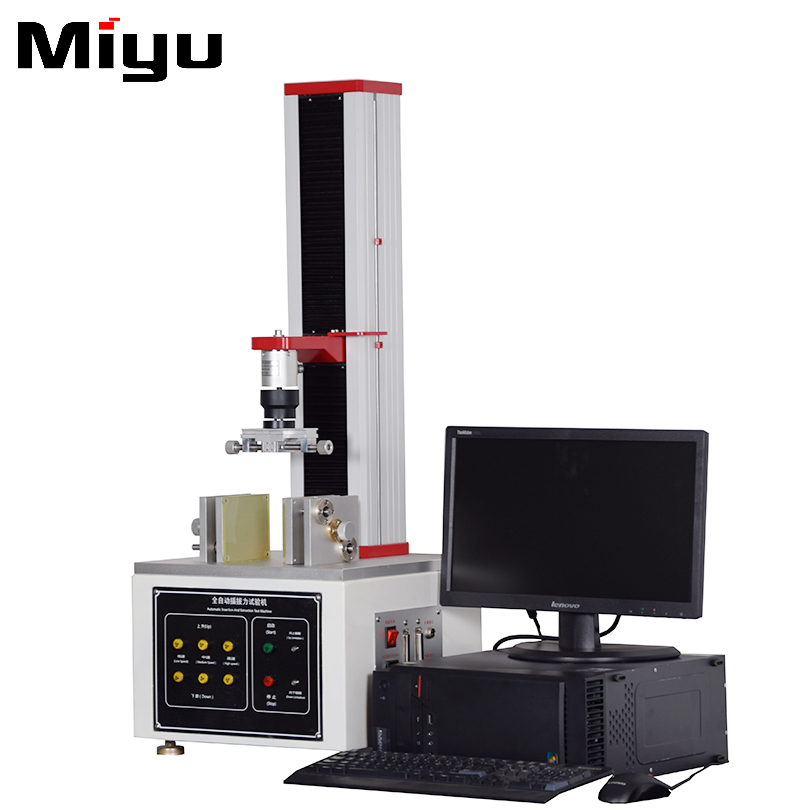

High quality Two-station insertion force testing machine (MY-WCBL-CD1) with PC controlled



Technical Specification



1. Plug-in capacity: 5kg , 20kg ,50kg ,100kg , 200kg optional
2. Load accuracy: ±0.5%
3. Unit options: Kg,N,g,lb
4. Displacement accuracy: ±0.005 mm
5. Displacement resolution: ≤ 0.001mm
6. Speed accuracy:Higher than ±1%F.S
7. XY axis moving platform stroke : 70mm
8. Test speed range: 1-300mm / min
9. Test times:99999999 times
10. Maximum test run: 300mm
11. External Dimension: 400x370x950mm
12. Control mode: Control board card + Computer
13. Power supply: 220v 50/60HZ
14. Power: 600W



Tester pictures



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ







Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ



Certificates



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ



Partner



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ



Shipment
By sea, by air, by truck, by courier, by train....



Double Station Tensile Impact Testing Machine PC Controlled 600W 60HZ







FAQ



1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.



4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
