Drop Testing Machine (MY-SKDL-1800), Sheet metal material with white color

Technical Specification

1. Drop stroke: 300-1800mm
2. Maximum clamping length: 220mm
3. External Dimension: 700 x 870 x 2500 mm
4. Speed regulation brake motor+Synchronous wheel synchronous belt drive+Cylinder holding type
5. Power supply: 220V, 50/60HZ
6. Power: 200W

Description

This machine is suitable for rolling and dropping experiments of mobile phones and other similar products. It is suitable for various small and light portable electronic products such as mobile phones, PDA, Electronic dictionaries, CD, MP3, etc. as well as connectors, remote controllers, etc. to conduct continuous rotation ( falling ) experiments. After the specified number of times is reached, the damage caused by the investigation will be investigated.
This test equipment meets the test conditions of international standard JIS C 60068 - 2 - 32 IEC 60068 - 2 - 32. The drum manufacturing process meets the appendix standard of GB / T 2423.8 - 1995.

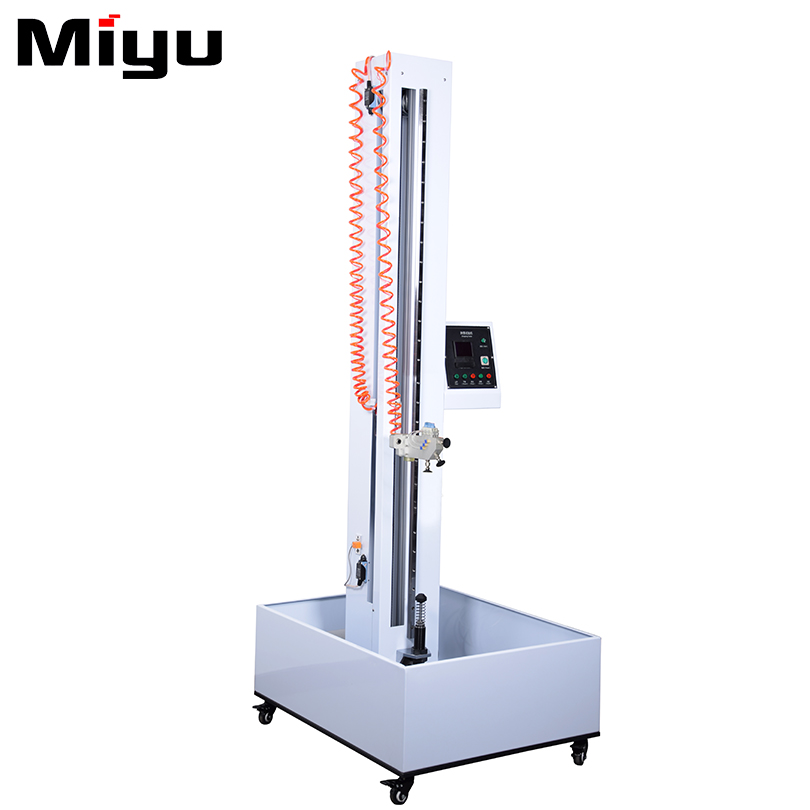

Tester pictures

Certificates

Partner

Shipment
By sea, by air, by truck, by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
