Direct factory for Universal material testing machine (MY-DAJ-D3) with competitive price, both OEM and ODM available from us

Description

This machine is mainly used for the special life testing machine of frequency converter power supply detection keys. It has the functions of automatic memory of times, power-down memory, cumulative life times, automatic shutdown of set times and so on. Strength correction, adjustable position and spacing, conduction test function. This key life tester is especially suitable for fatigue testing of keys of frequency converter controller.

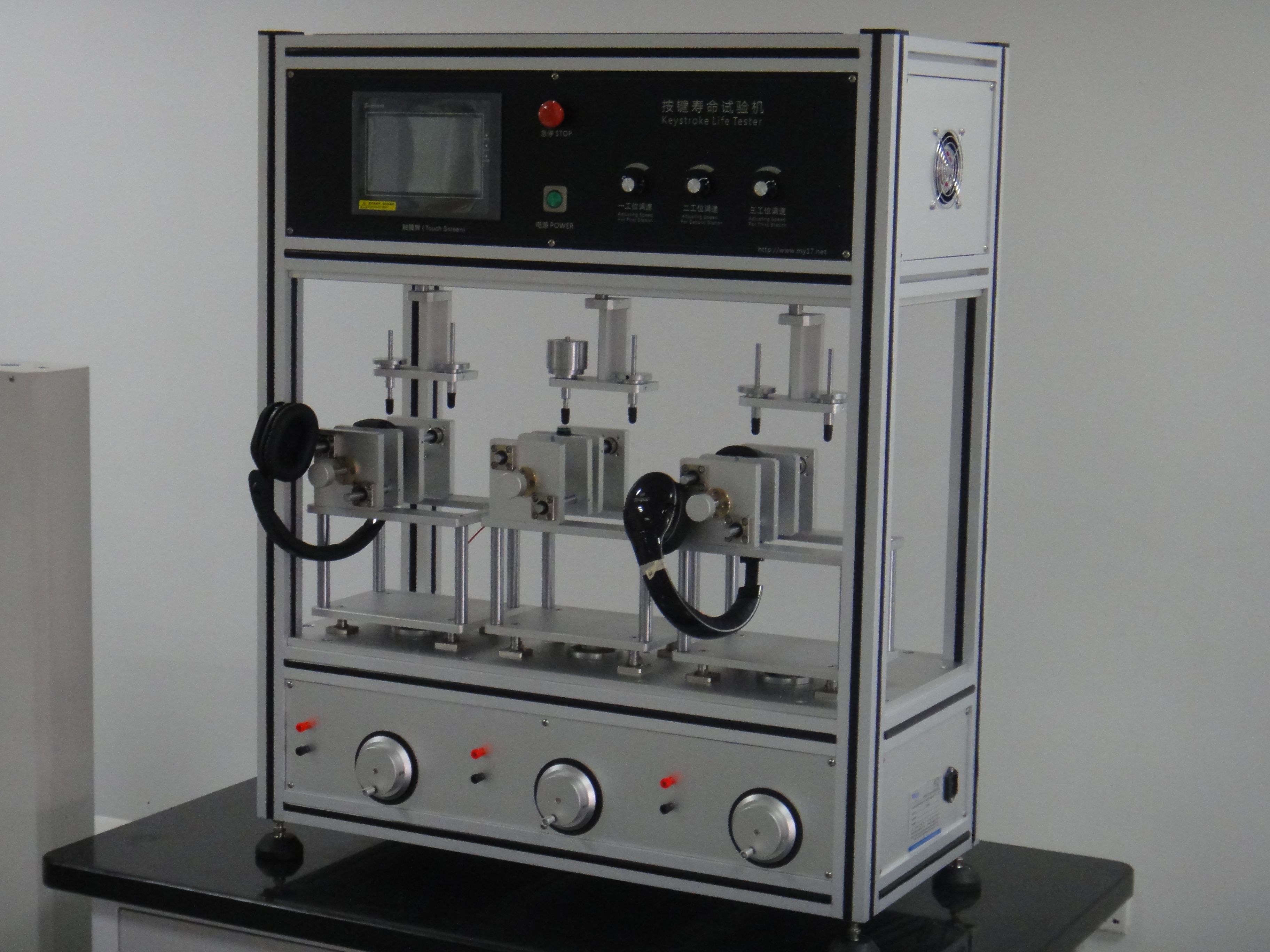

Tester pictures

Technical Specification

1. Station: 3 stations, operate independently
2. Number of tests: 1~99999999 times
3. Test mode: continuity test,life test
4. Test speed: 10~200 times/min
5. Worktable size: 100X80mm (without fixture)
6. Up and down movement stroke: 50mm
7. External Dimension: 264x400x750mm
8. Control mode: touch screen + speed control motor
9. Counterweight: 50g ,100g ,200g ,300g ,500g each
10. Power supply: 220V, 50/60HZ

11. Power: 100W

Certificates

Partner

Shipment
By sea, by air, by truck, by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
