Direct factory for Automatic button test machine (MY-ZDAJ-1) with competitive price, both OEM and ODM available from us

Technical Specification

1. Station: 1 station, operate independently
2. Number of tests: 1~99999999 times
3. Test mode: constant force test,position shift test
4. Test speed: 10~60 times/min
5. Maximum test stroke: 400mm
6. Displacement accuracy: ±0.005mm
7. Test speed range: 0-300mm/min

8. Speed accuracy: Higher than ± 1% F.S

9. Probe specifications: φ2,4,6,8,10mm and 1 connection head each

10. Machine size: 400 x 370 x 950mm

11. Control mode: touch screen + step servo
12. Power supply: 220V, 50/60HZ
13. Power: 400W

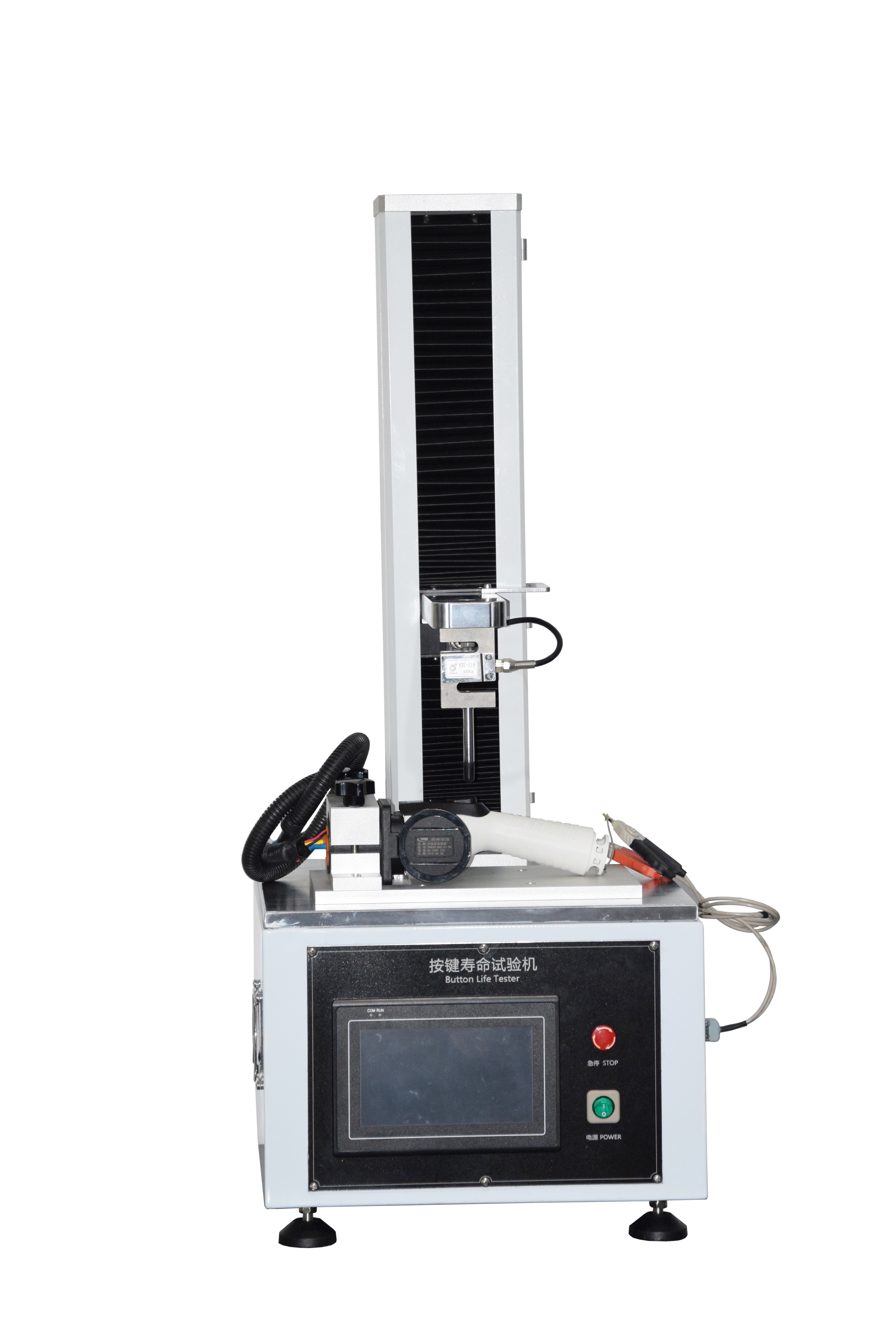

Tester pictures

Certificates

Partner

Shipment
By sea, by air, by truck, by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
